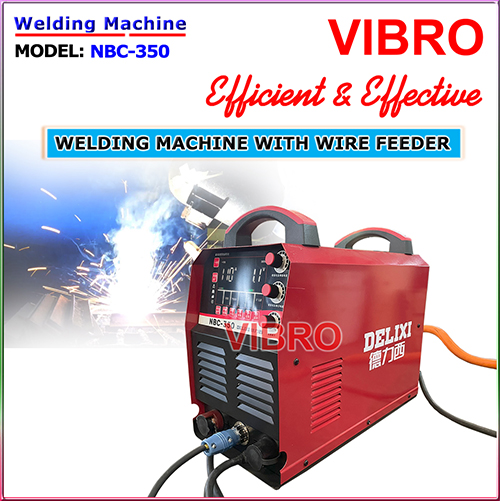

Welding Machine with Wire Feeder
[ NBC-350 ]
|
Model |
NBC-350 |
|
Rated Input Current |
23A |
|
Rated Duty Cycle |
60 |
|
Input Voltage & Current Ratings |
220V: 40A / 21.6V–200A / 28V, 380V: 40A / 21.6V–300A / 32V |
|
Duty Cycle Ratings |
60% Duty Cycle - 220V: U1 = 220V, I2 = 200A, 27.2V 60% Duty Cycle - 380V: U1 = 380V, I2 = 300A, 32V |
|
Duty Cycle Ratings |
100% Duty Cycle - 220V: U1 = 220V, I2 = 150A 100% Duty Cycle - 380V: U1 = 380V, I2 = 200A |
|
Voltage Adjustment Range |
17-31.5 |
|
Open Circuit Voltage (OCV) |
U0 = 75V (for 220V input), U0 = 70V (for 380V input) |
|
Maximum Input Current |
220V: I1max = 26A, 380V: I1max = 25.5A |
|
Efficiency |
89 |
|
Effective Current (I1eff) |
220V: 15.0A, 380V: 13.0A |
|
Applicable Welding Wire (mm) |
0.8 ~ 1.2 |
|
Applicable Welding Rod (mm) |
2.5 ~ 4.0 |
|
Applicable Plate Thickness (mm) |
0.8 - 20mm |
|
Applicable Materials |
Iron, Steel, Stainless Steel, Raw Iron, Galvanized Sheet |
|
Protection Level |
IP21 |
|
Insulation Class |
F |
|
Cooling Method |
Fan-cooled |
|
Weight (kg) |
20 |
|
Dimension (LxWxH) (mm) |
520 x 262 x 390 |
Wire Feeder
|
Model |
WND-GB08-500 |
|
Input Voltage |
DC 24V |
|
Input Current |
3A |
|
Welding Power Supply |
400A @ 100% duty cycle, 500A @ 60% duty cycle |
|
Protection Level |
IP21 |
|
Wire Feeding Speed |
1.5–22 m/min |
|
Welding Wire Diameter |
Ø1.0mm, Ø1.2mm, Ø1.6mm |
