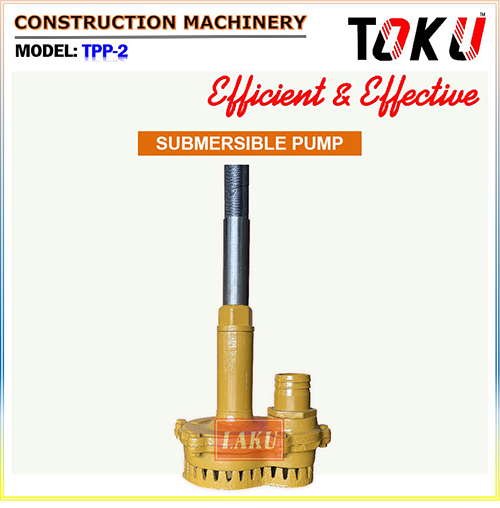

SUBMERSIBLE PUMP
[ FIXED FRAME ]
|
Model |
TSP-3 |
TPP-2 |
|
Discharge Diameter mm (inch) |
76 (3) |
50 (2) |
|
Max. (m) |
23 |
28 |
|
Max. Capacity (liter/min) |
1200 |
900 |
|
Revolution (rpm) |
3000 - 3400 |
3000 - 3400 |
|
Hose (mm × m) Diameter × Length |
Ø32 × 6.0 |
Ø32 × 5.0 |
|
Flexible Shaft (mm × m) Diameter × Length |
Ø12 × 6.0 |
Ø12 × 5.0 |
|
Weight (kg) |
28 |
25 |
|
Model |
TPP-3 |
TTP-3 |
|
Discharge Diameter mm (inch) |
76 (3) |
76 (3) |
|
Max. (m) |
23 |
23 |
|
Max. Capacity (liter/min) |
1200 |
1200 |
|
Revolution (rpm) |
3000 - 3400 |
3000 - 3400 |
|
Hose (mm × m) Diameter × Length |
Ø32 × 5.0 |
Ø32 × 6.0 |
|
Flexible Shaft (mm × m) Diameter × Length |
Ø12 × 5.0 |
Ø12 × 6.0 |
|
Weight (kg) |
26 |
29 |
|
Model |
TLP-3 |
|
Discharge Diameter mm (inch) |
76 (3) |
|
Max. (m) |
23 |
|
Max. Capacity (liter/min) |
1400 |
|
Revolution (rpm) |
3000 - 3400 |
|
Hose (mm × m) Diameter × Length |
Ø32 × 5.0 |
|
Flexible Shaft (mm × m) Diameter × Length |
Ø12 × 5.0 |
|
Weight (kg) |
22 |
